This is a maintenance manual for the Philips CMS patient monitoring system, which contains the features and instructions for use

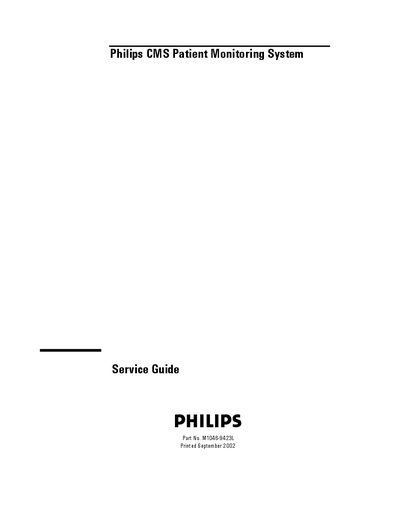

The Service Guide is a reference for the Philips CMS Patient Monitoring System, aimed at hospital biomedical engineers, technicians, and Philips service personnel. It covers the major units, controls, connectors, operating modes, cabling, safety checks, maintenance, and fault isolation.
The manual is organized into six chapters plus appendices: an introduction, testing & maintaining, troubleshooting the system, troubleshooting plug‑in modules, repairing the system, and a parts list. Appendices provide product options, conversion charts, calibration unit information, a programming tool manual, a glossary, and an index.
| EEG1+ Expected Impedance | 5 kΩ |
|---|---|
| EEG1‑ Expected Impedance | 10 kΩ |
| EEG2+ Expected Impedance | 12 kΩ |
| EEG2‑ Expected Impedance | 15 kΩ |
