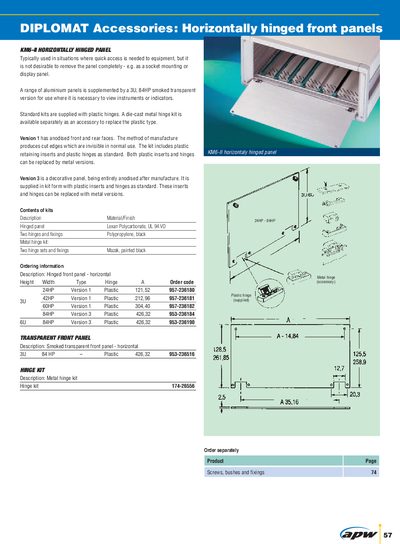

KM6-II HORIZONTALLY HINGED PANEL is typically used in situations where quick access is needed to equipment, but it is not desirable to remove the panel completely - e.g. as a socket mounting or display panel. A range of aluminium panels is supplemented by a 3U, 84HP smoked transparent version for use where it is necessary to view instruments or indicators. Standard kits are supplied with plastic hinges. A die-cast metal hinge kit is available separately as an accessory to replace the plastic type. Version 1 has anodised front and rear faces. The method of manufacture produces cut edges which are invisible in normal use. The kit includes plastic retaining inserts and plastic hinges as standard. Both plastic inserts and hinges can be replaced by metal versions. Version 3 is a decorative panel, being entirely anodised after manufacture. It is supplied in kit form with plastic inserts and hinges as standard. These inserts and hinges can be replaced with metal versions.
The VERO DIPLOMAT horizontally hinged front panels are designed for quick equipment access without full panel removal. Versions include anodised panels, decorative fully‑anodised panels, and a smoked transparent version for instrument visibility.
Standard kits come with plastic hinges and inserts, while a die‑cast metal hinge kit is offered as an optional accessory. Ordering tables list dimensions, hinge type and part numbers for each panel size.
| Panel material | Lexan Polycarbonate, UL 94.V0 |
|---|---|
| Standard hinge type | Plastic |
| 84HP Version 3 order code | 953-236184 |
The hinged front panel is made of Lexan polycarbonate that meets UL 94.V0 fire‑rating standards.
Standard kits include plastic hinges; a die‑cast metal hinge kit can be ordered separately as an accessory.
The order code for the 84HP Version 3 plastic panel is 953‑236184.
