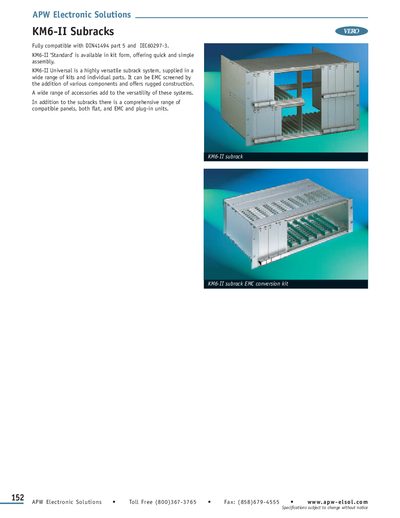

The KM6-II subrack system, offered by APW Electronic Solutions, is a highly versatile rack system that is fully compatible with DIN41494 part 5 and IEC60297-3 standards. It can be EMC screened by adding various components and offers rugged construction. The system comes with a wide range of accessories, including flat panels, EMC panels, and plug-in units.
The KM6-II series offers both Standard and Universal subracks that are strong, versatile and fully compliant with IEC 60297-3. They are available in 3U, 6U, 7U, 9U heights and 42HP or 84HP widths, with options for backplane or DIN 41612 connector mounting.
The handbook provides detailed ordering information, part lists, material specifications (aluminum alloy 606316, conductive finish), and optional accessories such as hinged front panels and the KM6-II Toolkit CAD package.
| Compliance | IEC 60297-3 |
|---|---|
| Heights | 3U, 6U (also 4U, 7U, 9U for universal) |
| Widths | 42HP and 84HP |
| Mounting Compatibility | 160 mm mounting in 220 mm versions; 160 mm and 220 mm board compatible |
| Material (extrusions) | Aluminum alloy BS 1474 606316, conductive finish |
| Connector Type | DIN 41612 |
The KM6-II subrack complies with IEC 60297-3.
The extrusions are made of aluminum alloy BS 1474 606316 with a conductive finish.
