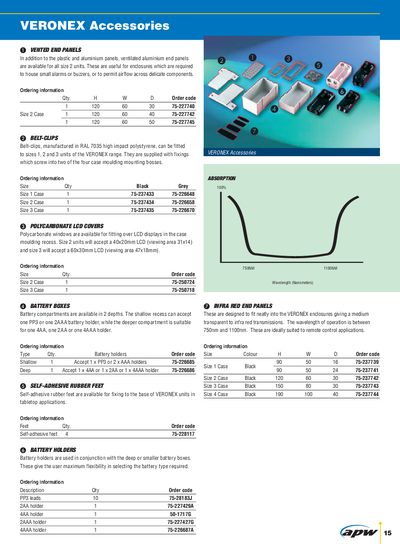

The document describes the features and characteristics of VERONEX accessories, including ventilated aluminium end panels, belt-clips, polycarbonate LCD covers, and battery boxes. These accessories are available for different sizes of VERONEX enclosures and can be used to house small alarms, buzzers, or delicate components, provide airflow across components, protect LCD displays, and accommodate different types of batteries.
This leaflet lists the optional accessories that can be added to Vero VERONEX enclosure units. It provides ordering codes, dimensions and material details for each part, helping users select the right component for their application.
Accessories covered include ventilated aluminium end panels, high‑impact polystyrene belt‑clips, polycarbonate LCD covers, battery boxes (shallow and deep), infrared‑transparent end panels, self‑adhesive rubber feet and various battery holders.
| Ventilated end panel (Size 2) dimensions (H×W×D) | 120 × 60 × 30 mm |
|---|---|
| Belt‑clip material | High impact polystyrene (RAL 7035) |
| Polycarbonate LCD cover (Size 2) viewing area | 31 × 14 mm |
| Infra‑red end panel operating wavelength | 750 nm – 1100 nm |
| Shallow battery box (Size 1) dimensions (H×W×D) | 90 × 50 × 16 mm |
Ventilated aluminium end panels are available for all size 2 units.
The belt‑clips are made of high‑impact polystyrene, colour RAL 7035.
A 40 × 20 mm LCD (viewing area 31 × 14 mm) fits the size 2 unit.
The infrared‑transparent panels operate between 750 nm and 1100 nm.
