Maxim MAX1196 Dual 8‑Bit 40Msps 3V Low‑Power ADC Datasheet

The MAX1196 is a 3V, dual 8-bit analog-to-digital con- verter (ADC) featuring fully differential wideband track- and-hold (T/H) inputs, driving two ADCs. The MAX1196 is optimized for low power, small size, and high-dynamic performance for applications in imaging, instrumenta- tion, and digital communications. This ADC operates from a single 2.7V to 3.6V supply, consuming only 87mW while delivering a typical signal-to-noise and dis- tortion (SINAD) of 48.4dB at an input frequency of 20MHz and a sampling rate of 40Msps. The T/H driven input stages incorporate 400MHz (-3dB) input ampli- fiers. The converters can also be operated with single- ended inputs. In addition to low operating power, the MAX1196 features a 3mA sleep mode as well as a 0.1µA power-down mode to conserve power during idle periods. An internal 2.048V precision bandgap reference sets the full-scale range of the ADC. A flexible reference structure allows the use of this internal or an externally applied reference, if desired for applications requiring increased accuracy or a different input voltage range. The MAX1196 features parallel, multiplexed, CMOS- compatible three-state outputs. The digital output format can be set to two’s complement or straight offset binary through a single control pin. The device provides for a separate output power supply of 1.7V to 3.6V for flexible interfacing. The MAX1196 is available in a 7mm × 7mm, 48-pin TQFP package, and is specified for the extended indust

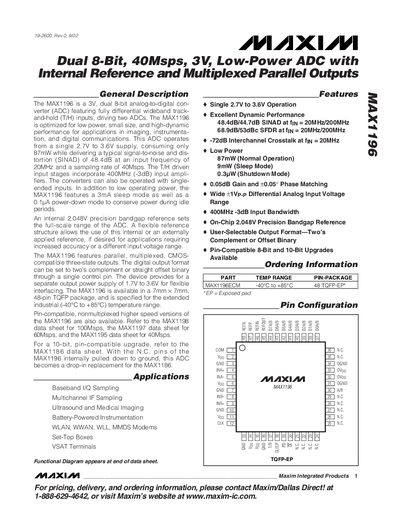

Maxim MAX1196 Dual 8‑Bit 40Msps 3V Low‑Power ADC Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
23
File format
PDF
File size
635 KB
Published
02 May, 2012
Updated
01 October, 2023
MD5 checksum
9789AB77A850300450584DC760A532BC

About this manual

The MAX1196 is a 3 V, dual 8‑bit analog‑to‑digital converter featuring fully differential wideband track‑and‑hold inputs and parallel, multiplexed CMOS‑compatible three‑state outputs. It operates from a single 2.7 V to 3.6 V supply and consumes only 87 mW in normal mode, with ultra‑low‑power sleep and shutdown options.

The device includes an internal 2.048 V precision bandgap reference, selectable output format (two’s complement or offset binary), and is available in a 48‑pin TQFP package for the extended industrial temperature range (‑40 °C to +85 °C). It is suited for imaging, instrumentation, digital communications, and other high‑dynamic‑performance applications.

What's inside

  • General Description
  • Applications
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Power Requirements
  • Timing Characteristics
  • Typical Operating Characteristics
  • Pin Description
  • Layout Guidelines

Specifications

Supply Voltage Range2.7 V – 3.6 V
Power Consumption (Normal Operation)87 mW
Resolution8 bits
Maximum Sampling Rate40 Msps
Internal Reference Voltage2.048 V
Package48‑pin TQFP (7 mm × 7 mm)
Operating Temperature Range‑40 °C to +85 °C

Frequently asked questions

What is the supply voltage range for the MAX1196?

The MAX1196 operates from a single 2.7 V to 3.6 V supply.

How much power does the MAX1196 consume in normal operation?

It consumes 87 mW while delivering typical performance.

What is the maximum sampling rate of the MAX1196?

The device supports up to 40 Msps sampling rate.

In what package is the MAX1196 offered?

It is available in a 48‑pin TQFP package measuring 7 mm × 7 mm.
