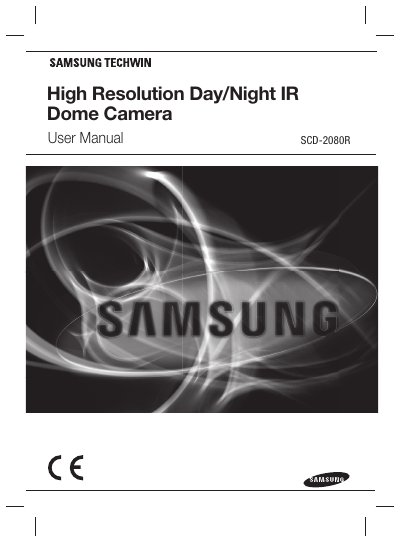

This manual introduces the operation of SCD-2080R High Resolution Day/Night IR Fixed Camera
This manual covers the Samsung SCD-2080R series high‑resolution day/night IR dome camera. It introduces the camera’s key features, lists the items included in the package, and explains how to install and connect the unit safely.
The guide also details the camera’s technical specifications, on‑screen display options, and troubleshooting procedures, while emphasizing important safety precautions such as proper power handling and environmental limits.
| Image Sensor | 1/3" Super HAD CCD II |
|---|---|
| Total Pixels | 811(H) x 508(V) |
| Horizontal Resolution (Color) | 600 TV lines |
| Minimum Illumination (Color) | 0.15 Lux ([email protected]) |
| Lens Focal Length (Zoom) | 2.8 – 10 mm (3.6×) |
| Power Consumption (max) | 3.5 W |
| Dimensions | Ø115.8 × 92.7 mm |
| Weight | 310 g |
| Operating Temperature | -10 °C to +50 °C |
The indoor visibility range is 20 m when the IR‑LEDs are on and illumination is 0 Lux.
The camera operates on a 12 V DC supply with a tolerance of ±10 %.
The camera supports multiple languages, including English, French, Spanish, Japanese, Korean, Portuguese, Taiwanese for NTSC models, and additional languages for PAL models.
The mains plug is a disconnect device and must remain readily operable at all times.
