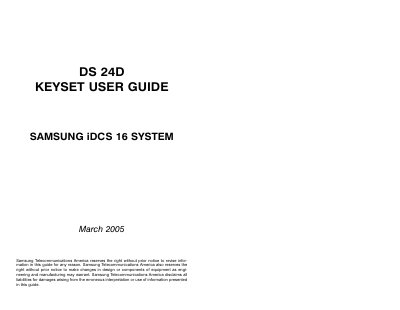

This document is the user guide of Samsung iDCS 16 system DS 24D keyset. It introduces the appearance, function and usage method of the product.
The Samsung DS 24D keyset is the primary user interface for iDCS 16 telephone systems. The guide introduces the keyset’s layout, LEDs, speakerphone, and volume controls, and explains how to make and receive outside, intercom, and internal calls.
It also details advanced functions such as speed dialing, paging, messaging, callback, camp‑on, and customization options like ring preferences, programmable keys, and display features. Safety notes and default feature access codes are provided for proper setup and troubleshooting.
| Display | 32 characters (two lines of 16 characters) |
|---|---|
| Volume Levels | 16 levels per setting (8 levels for ring, off‑hook, handset) |
Lift the handset and press an idle outside line button, line group button or dial a line access code to receive dial tone, then dial the telephone number.
Lift the handset to automatically connect, or press the SPEAKER key to answer on the speakerphone.
Press the CBK key (or dial 44) to hear a confirmation tone, then press the HOLD key while the tone is playing to cancel the oldest set callback.
The keyset has a 32‑character display consisting of two lines with 16 characters each.
