Samsung CSP Chip Scale Package User Manual

This is a user's manual for CSP products. It mainly introduces the structure and characteristics of CSP, general handling methods, possible defect modes in the mounting process, and visual inspection standards.

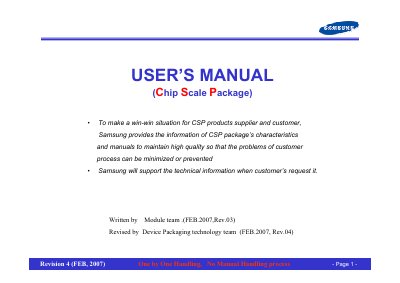

Samsung CSP Chip Scale Package User Manual - cover page
Brand
Samsung
Category
Other Electronics
Document type
User Manual
Language
English
Pages
49
File format
PDF
File size
1.3 MB
Published
02 May, 2012
Updated
30 September, 2023
MD5 checksum
3D316771147E68DBC4DCE69A42101FEC

About this manual

The manual describes the characteristics of Chip Scale Packages (CSP) and outlines the recommended one‑by‑one handling procedures to avoid damage during transport, storage, and PCB assembly. It includes detailed instructions for box, tray, and reel conveyance, as well as guidelines for mounting processes and memory module handling.

Additional sections cover common failure modes such as chip cracks, solder joint reliability, and reball repair, and provide visual inspection criteria for marking areas, solder balls, and external surfaces to ensure product quality.

What's inside

  • Understanding of CSP
  • General Handling Method
  • Defect Modes in SMT Process
  • Inspection Criteria
  • Packaging and Transport Guidelines

Specifications

Chip break force (kgf)4.30
Package break force (kgf)4.85
Solder ball coplanarity limit4 Mil

Frequently asked questions

What handling method is recommended for CSP packages?

The manual recommends one‑by‑one handling with no manual handling, using vacuum pads and following the specific box, tray, and reel procedures.

What are the inspection criteria for solder balls?

Solder balls must not be missing, fused, mis‑placed beyond tolerance, or damaged; any such defect requires rejection.
