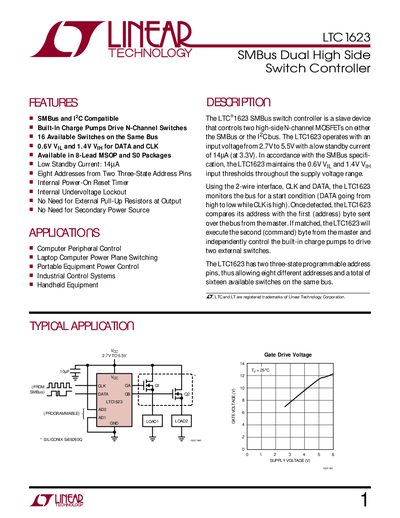

LINEAR TECHNOLOGY - 1 LTC1623 handbook

The LTC1623 SMBus switch controller is a slave device that controls two high-side N-channel MOSFETs on either the SMBus or the I2C bus. It operates with an input voltage from 2.7V to 5.5V and has a low standby current of 14µA. It has 16 available switches on the same bus and supports a VIL of 0.6V and VIH of 1.4V for DATA and CLK. It is suitable for computer peripheral control, laptop computer power plane switching, portable equipment power control, industrial control systems, and handheld equipment.

---

Brand

Linear Technology

File format

PDF

Published

02 May, 2012

Updated

29 September, 2023

MD5 checksum

7F55F9075517440DA2A361A979E85029

PDF

LINEAR TECHNOLOGY - 1 LTC1623 handbook PDF
