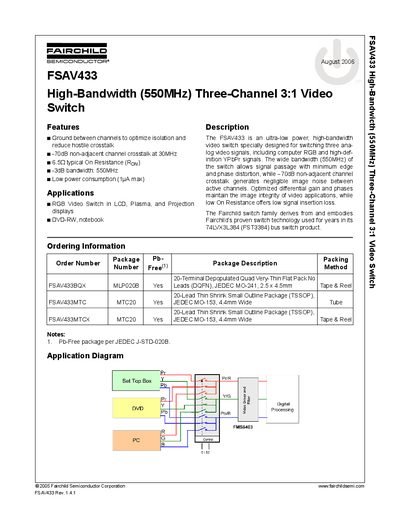

The FSAV433 is an ultra-low power, high-bandwidth video switch specially designed for switching three analog video signals, including computer RGB and high-definition YPbPr signals. The wide bandwidth (550MHz) of the switch allows signal passage with minimum edge and phase distortion, while −70dB non-adjacent channel crosstalk generates negligible image noise between active channels. Optimized differential gain and phases maintain the image integrity of video applications, while low On Resistance offers low signal insertion loss.
The FSAV433 is an ultra‑low‑power, high‑bandwidth video switch designed for switching three analog video signals such as computer RGB and high‑definition YPbPr. It offers a -3 dB bandwidth of 550 MHz, -70 dB non‑adjacent channel crosstalk at 30 MHz, and a typical on‑resistance of 6.5 Ω, making it suitable for LCD, plasma, projection displays, DVD‑RW and notebook applications.
The datasheet lists electrical characteristics, AC and DC performance, package options (20‑lead TSSOP and 20‑lead DQFN), pin assignments, and mechanical dimensions. Ordering information and recommended operating conditions are also provided, along with test diagrams and legal notices.
| Non‑adjacent Channel Crosstalk | -70 dB @ 30 MHz |
|---|---|
| Typical On‑Resistance (Ron) | 6.5 Ω |
| Supply Voltage Range | -0.5 V to +4.6 V |
| Input Voltage Range | -0.5 V to +46 V |
It provides -70 dB crosstalk at 30 MHz for non‑adjacent channels.
The typical on‑resistance is about 6.5 Ω.
It is offered in a 20‑lead TSSOP (MTC, MTCX) and a 20‑lead DQFN (BQX) package.
