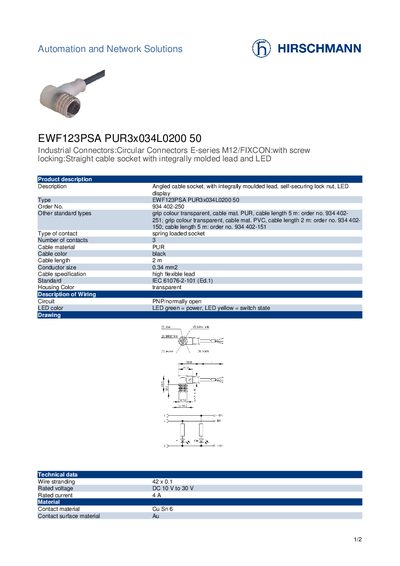

EWF123PSA PUR3x034L0200 50 is a circular connector from EIPLEI with an angled cable socket with integrally molded lead and LED display, self-securing lock nut.
The EWF123PSA PUR3x034L0200 50 is an angled circular M12 connector with an integrally moulded lead, self‑securing lock nut and LED status indicator. It is offered in transparent and PVC cable grips with lengths of 2 m or 5 m, and the standard IEC 61076‑2‑101 applies.
Technical data include a 3‑contact spring‑loaded socket, PUR cable material, 0.34 mm² conductor size, rated voltage DC 10‑30 V, rated current 4 A, and IP68/IP69K protection. The connector is supplied in packaging units of 50 pieces and can be ordered with optional locking caps.
| Number of contacts | 3 |
|---|---|
| Cable material | PUR |
| Cable color | black |
| Cable length | 2 m |
| Conductor size | 0.34 mm² |
| Rated voltage | DC 10 V to 30 V |
| Rated current | 4 A |
| Contact material | Cu Sn 6 |
| Contact surface material | Au |
| Protection class | IP68 / IP69K |
| Temperature range | -25 °C to +90 °C |
| Pollution severity | 3 |
| Cable fire resistance | IEC 332‑2 |
| Packaging unit | 50 pieces |
It is rated for DC 10 V to 30 V and a current of 4 A.
The connector complies with IP68 and IP69K protection classes.
It can operate from –25 °C up to +90 °C.
The standard cable length is 2 m and the cable material is PUR.
