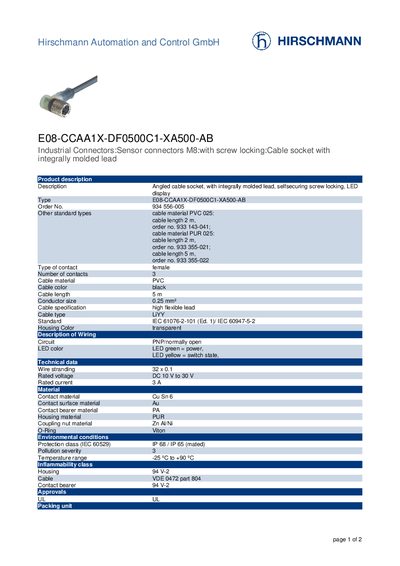

E08-CCAA1X-DF0500C1-XA500-AB is a cable socket with integrally molded lead, selfsecuring screw locking, LED display produced by Hirschmann Automation and Control GmbH.
The E08-CCAA1X-DF0500C1-XA500-AB is an angled cable socket with an integrally molded lead, self‑securing screw locking and LED display. It features a transparent housing, three contacts, and a high‑flexible lead cable available in PVC or PUR material.
The connector is rated for DC 10 V to 30 V, 3 A, and operates from –25 °C to +90 °C. It meets IEC 61076‑2‑101 and IEC 60947‑5‑2 standards, with IP68/IP65 protection, UL approval, and includes a Viton O‑Ring for sealing.
| Connector type | Angled cable socket with integrally molded lead |
|---|---|
| Number of contacts | 3 |
| Cable material | PVC |
| Cable length | 5 m |
| Conductor size | 0.25 mm? |
| Rated voltage | DC 10 V to 30 V |
| Rated current | 3 A |
| LED colors | green = power, yellow = switch state |
| Protection class | IP68 / IP65 (mated) |
| Temperature range | -25 °C to +90 °C |
| Contact material | Cu Sn 6 |
| Contact surface material | Au |
| Housing material | PUR |
| Coupling nut material | Zn AVNi |
| O‑Ring material | Viton |
It is rated for DC 10 V to 30 V and a current of 3 A.
The connector has three contacts.
It meets IP68 / IP65 (mated) protection.
