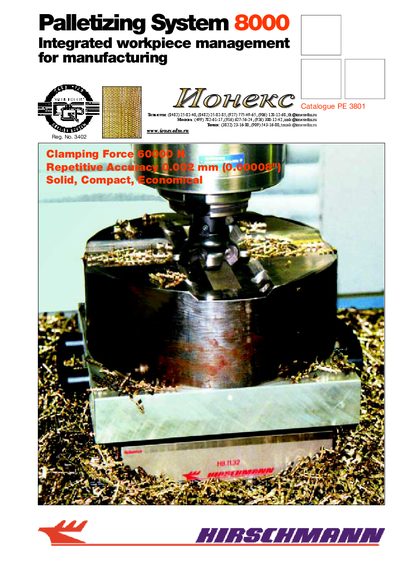

The Hirschmann Palletizing System 8000 catalogue details features, specifications, and accessories for integrated workpiece management.
The catalogue presents the Hirschmann Palletizing System 8000, a fixturing solution for milling, drilling, grinding, EDM and other machine tools. It describes the system’s high precision (0.002 mm repetitive accuracy), large load capacity (up to 300 kg), and options for manual or automatic pallet changes using the Workpiece Changer EROBOT.
Additional sections cover economic benefits, compatibility with Hirschmann Fixturing Systems 4000/5000, pneumatic clampers, presetting work stations, and handling devices such as the EROBOT series. Contact information for Hirschmann offices worldwide is also provided.
| Clamping force | 60000 N |
|---|---|
| Repetitive accuracy | 0.002 mm (0.00008") |
| Maximum workpiece weight | 300 kg (661 lbs) |
| Pallet size (HPS320) | 320 mm × 320 mm (12.60" × 12.60") |
| Indexing accuracy | 0.01 mm (0.0004") per 90° |
The system provides a clamping force of 60 000 N.
The repetitive accuracy is 0.002 mm (0.00008").
Each pallet can support up to 300 kg (661 lbs) of workpiece weight.
The HPS320 pallet measures 320 mm × 320 mm × 56 mm (12.6" × 12.6" × 2.2").
