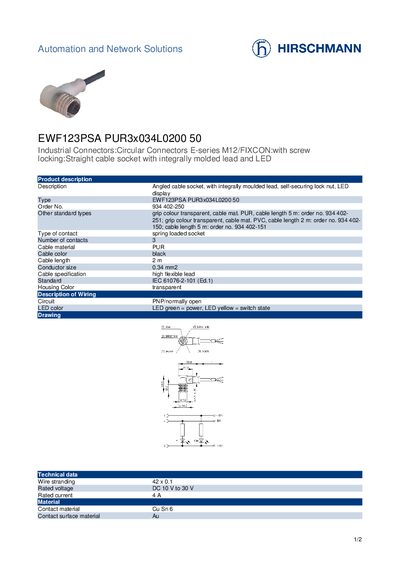

Hirschmann EWF123PSA PUR3x034L0200 50 Data Sheet
The EWF123PSA PUR3x034L0200 50 is an angled M12 circular connector featuring an integrally moulded lead, self‑securing lock nut and LED status display. It is supplied with a transparent housing and a black PUR cable of 2 m length (5 m options also available).
Technical data include a 3‑contact spring‑loaded socket, rated for DC 10 V‑30 V and 4 A, with copper‑tin contacts plated in gold. The connector meets IEC 61076‑2‑101, offers IP68/IP69K protection, and operates from –25 °C to +90 °C. Packaging is in units of 50 pieces, with optional locking caps available separately.
Hirschmann EWF123PSA specifications
| Number of contacts | 3 |
|---|---|
| Cable material | PUR |
| Cable color | black |
| Cable length | 2 m |
| Conductor size | 0.34 mm² |
| Rated voltage | DC 10 V to 30 V |
| Rated current | 4 A |
| Contact material | Cu Sn 6 |
| Contact surface material | Au |
| Protection class | IP68 / IP69K |
| Temperature range | -25 °C to +90 °C |
| Packaging unit | 50 pieces |
All Hirschmann EWF123PSA documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated voltage and current of the EWF123PSA connector?
It is rated for DC 10 V to 30 V and a current of 4 A.
What IP protection rating does the connector have?
The connector meets IP68 and IP69K protection classes.
What is the rated voltage and current of the EWF123PSA PUR3x034L0200 50 connector?
It is rated for DC 10 V to 30 V and a current of 4 A.
From: Hirschmann EWF123PSA PUR3x034L0200 50 Connector Datasheet
What protection class does the connector meet?
The connector complies with IP68 and IP69K protection classes.
From: Hirschmann EWF123PSA PUR3x034L0200 50 Connector Datasheet
