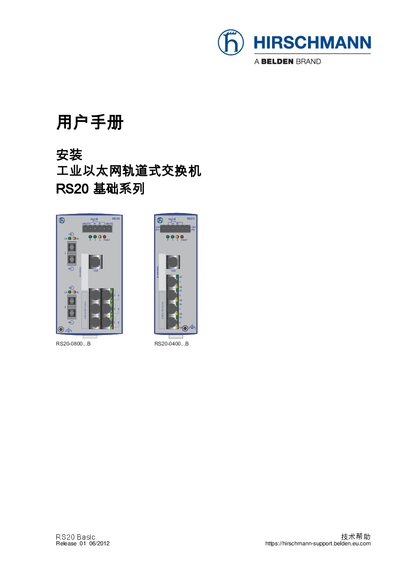

The Hirschmann RS20 Basic user manual provides safety instructions, installation, configuration steps, and technical specifications for the industrial…
This manual covers all aspects needed to safely install, configure, and maintain the RS20 Basic industrial Ethernet switch. It begins with safety warnings, required qualifications for personnel, and guidelines for proper grounding and enclosure.
Subsequent sections detail mechanical installation, wiring, basic settings, maintenance procedures, and a full list of technical parameters such as dimensions, power requirements, environmental limits, and compliance with ATEX and FCC standards.
| Dimensions (RS20‑0400) | 47 mm x 131 mm x 111 mm |
|---|---|
| Insulation Voltage (connector‑to‑chassis) | 800 V DC |
Only when installed in an enclosure that meets ATEX requirements (e.g., IP54) and marked with the appropriate ATEX certification; otherwise the device must not be used in such environments.
