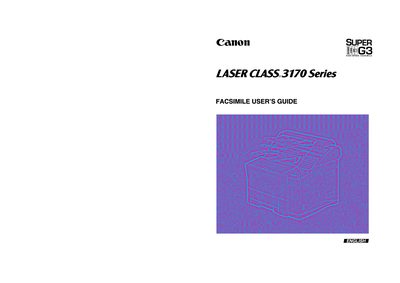

This document is the user guide for Canon LASER CLASS 3170 and 3175, describing the features and characteristics of the products.
This manual covers everything needed to install and operate the Canon LASER CLASS 3170 Series facsimile equipment. It explains pre‑installation requirements, power and telephone line connections, and safety warnings, ensuring the unit is set up correctly for reliable fax transmission.
The guide also details the machine’s specifications such as sheet size limits, automatic document feeder capacity, memory options, scanning resolution, and transmission speed. Troubleshooting tips, index entries, and a glossary help users resolve common issues and understand the device’s features.
| Maximum sheet width | 11 in (279 mm) |
|---|---|
| Minimum sheet width | 5.8 in (148 mm) |
| ADF capacity | 50 letter‑ or A4‑size pages |
| Effective scanning image width | 10 in (254 mm) |
| Multi‑purpose tray capacity | ≈100 sheets (letter, legal, A4) |
| Paper cassette 1 capacity | ≈500 sheets (letter, legal, A4) |
| Memory (standard) | 3 MB (≈192 pages) |
| LCD display size | 20 × 2 characters |
| Scanning line density (Standard) | 8 dots/mm × 3.85 lines/mm |
| Transmission time (Super G3) | ≈3 seconds per page |
| Toner cartridge model | Canon FX6 |
Only a single telephone line (touch‑tone or rotary) is to be used.
The maximum sheet width is 11 inches (279 mm).
It comes with 3 MB of memory, roughly 192 pages, with upgrade options available.
Transmission time is approximately 3 seconds per page.
