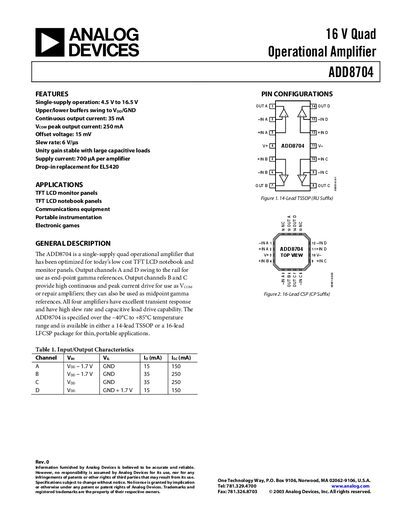

ADD8704 is a 16V single-supply quad operational amplifier that is drop-in replacement for EL5420. It is suitable for TFT LCD monitor panels, TFT LCD notebook panels, communications equipment, portable instrumentation and electronic games.
The ADD8704 is a single‑supply quad operational amplifier optimized for low‑cost TFT LCD notebook and monitor panels. Channels A and D swing to the rail for end‑point gamma references, while channels B and C provide high continuous and peak current drive for Vcom or repair amplifiers.
The device operates from 4.5 V to 16.5 V, delivers up to 35 mA continuous output current, and features a 6 V/µs slew rate, low offset voltage (15 mV), and excellent capacitive‑load drive capability. It is offered in 14‑lead TSSOP and 16‑lead LFCSP packages.
| Supply Voltage Range | 4.5 V to 16.5 V |
|---|---|
| Continuous Output Current (B & C) | 35 mA |
| Slew Rate | 6 V/µs |
| Input Offset Voltage | 15 mV |
| Input Bias Current (typical) | 200 nA |
It operates from 4.5 V to 16.5 V on a single supply.
It is used in TFT LCD monitor panels, notebook panels, communications equipment, portable instrumentation, and electronic games.
Channels B and C can deliver a continuous output current of 35 mA.
The typical input offset voltage is 15 mV.
