The ADTL082/ADTL084 are low-cost JFET input operational amplifiers that are compatible with the TL082/TL084. Their features include low input bias current (10pA), low noise (16nV/√Hz), wide bandwidth (5MHz), high open-loop gain (80dB) and low total harmonic distortion (0.001%).
The ADTL082 and ADTL084 are low‑cost JFET‑input operational amplifiers compatible with TL08x devices. They offer low input bias current, low noise, wide bandwidth and high CMRR, making them suitable for general‑purpose amplification, power control, active filters, industrial control and data acquisition.

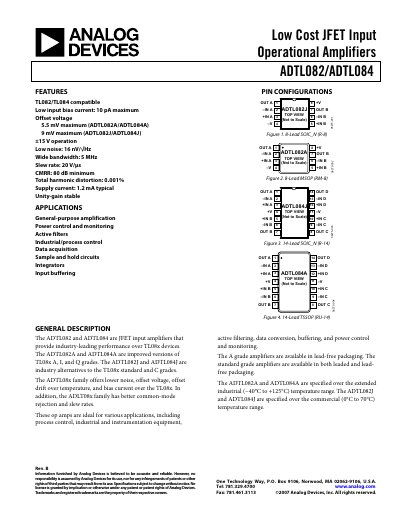

The handbook includes features, applications, pin configurations, detailed electrical specifications, absolute maximum ratings, thermal resistance data, typical performance curves, package dimensions and an ordering guide for the various SOIC, MSOP and TSSOP options.
| Offset Voltage | 5.5 mV max |
|---|---|
| CMRR | 80 dB min |
The absolute maximum rating lists a supply voltage of ±18 V or +36 V.
The ADTL082A/ADTL084A are rated for –40 °C to +125 °C, while the ADTL082J/ADTL084J cover 0 °C to +70 °C.
