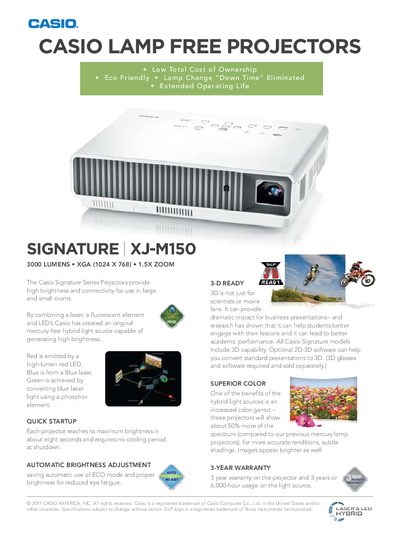

This file introduces the features and characteristics of the Casio Signature Series projectors, including high brightness, connectivity, quick startup, automatic brightness adjustment, superior color performance, 3-year warranty, and 3D Ready
The XJ-M150 is a lamp‑free hybrid projector that combines a red LED, a blue laser, and a phosphor‑converted green source to deliver 3000 lumens of brightness and 3‑D capability. It offers a wide color gamut, automatic brightness adjustment, and a quick‑startup time of about eight seconds.
This manual covers quick startup procedures, detailed specifications, mounting options, connectivity ports, and included accessories. It also explains warranty terms, security features, and optional accessories such as 3‑D glasses and conversion software.
| Brightness | 3000 lumens |
|---|---|
| Zoom | 1.5x Manual |
| Light Source | Casio Laser & LED Hybrid |
| Estimated Operating Life | Up to 20,000 Hours (Warranty 3 years or 6,000 hrs) |
| Native Resolution | 1024 × 768 |
| Power Consumption (Eco) | 150 W |
| Power Consumption (Bright) | 190 W |
| Dimensions (incl. projection) | 12.24 × 9.61 × 3.31 in |
Each projector reaches its maximum brightness in about eight seconds.
The light source is covered for 3 years or 6,000 hours of use.
Yes, the projector includes 3‑D capability and optional 2D‑3D conversion software and glasses.
