This document describes the features and characteristics of Noritake Itron VFD modules, including 2x40 display characters, 5mm dot characters, international font and katakana font, high brightness blue-green display, high-speed parallel/serial interface, etc.

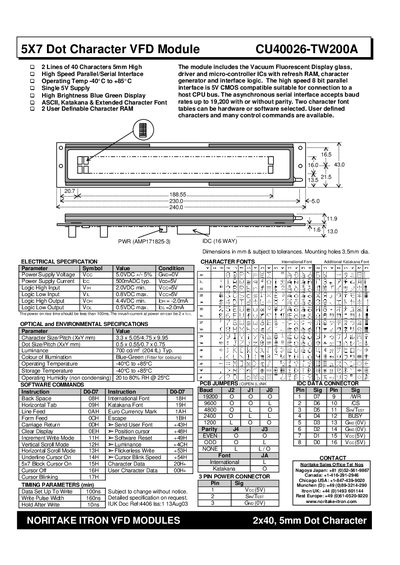

The CU40026‑TW200A is a 5×7 dot character vacuum fluorescent display (VFD) module offering two lines of 40 characters with 5 mm high characters. It includes a high‑speed parallel/serial interface driver, micro‑controller ICs with refresh RAM, and supports ASCII, Katakana and extended character fonts up to 19,200 baud.
The module operates from a 5 VDC supply (±5 %) drawing up to 500 mA, and provides CMOS‑compatible logic levels. Optical specifications include 700 cd/m² luminance and blue‑green illumination. Environmental limits are –40 °C to +85 °C for both operation and storage, with 20‑80 % non‑condensing humidity. A full set of software commands and timing parameters are listed for control and display functions.
| Display type | 5X7 Dot Character VFD Module |
|---|---|
| Characters | 2 Lines of 40 Characters 5mm High |
| Power supply voltage | 5.0 VDC ±5 % |
| Power supply current | 500 mA DC typ. |
| Logic High Input (VIH) | 2.0 VDC min. |
| Logic Low Input (VIL) | 0.8 VDC max. |
| Luminance | 700 cd/m² (typ.) |
| Operating temperature | -40 °C to +85 °C |
| Character size/pitch | 3.3 × 5.05 mm / 4.75 × 9.95 mm |
| Dot size/pitch | 0.5 × 0.55 mm / 0.7 × 0.75 mm |
| Maximum baud rate | 19,200 baud |
The module operates from –40 °C to +85 °C.
It requires a 5.0 VDC supply with a tolerance of ±5 %.
The asynchronous serial interface supports up to 19,200 baud.
