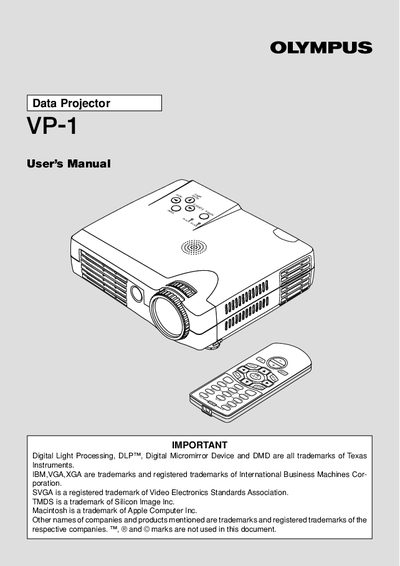

Olympus VP-1 Data Projector User Manual

This document is the user manual for OLYMPUS Data Projector VP-1, which describes the functions and usage of the data projector.

Brand: Olympus
Category: Projector
Document type: User Manual
Language: English
Pages: 72
File format: PDF
File size: 2.3 MB
Published: 02 May, 2012
Updated: 29 September, 2023
MD5 checksum: 87285BCE83C3ECCE34C6B08DE4B6D190
PDF: Olympus VP-1 Data Projector User Manual PDF

About this manual

This manual covers important safety information, installation guidelines, and proper handling of the Olympus VP-1 Data Projector. It explains power requirements, lamp replacement, cleaning, and ventilation to ensure reliable performance.

Detailed sections describe connecting PCs and video equipment, menu operations, picture adjustments, troubleshooting, and technical specifications such as contrast ratio, power supply, and dimensions.

What's inside

Important Safety Information
Major Features
Checking the Supplied Accessories
Setup and Projection
Adjustments and Settings
General Operations
Menu Operations
Troubleshooting
Specifications

Specifications

Power Supply	100‑240 V 50/60 Hz AC
Weight	1.1 kg (2.4 lb)
Lamp Life	1100 hours

Frequently asked questions

How should the projector be placed for best results?

Use the unit in a darkened room on a flat, level surface away from dust, moisture, direct sunlight, and heat‑radiating appliances.

What power supply does the projector require?

The projector operates on a universal AC supply of 100‑240 V at 50/60 Hz.

When should the lamp be replaced?

Replace the lamp as soon as the Status indicator lights; do not use the lamp after 1100 hours of operation.
