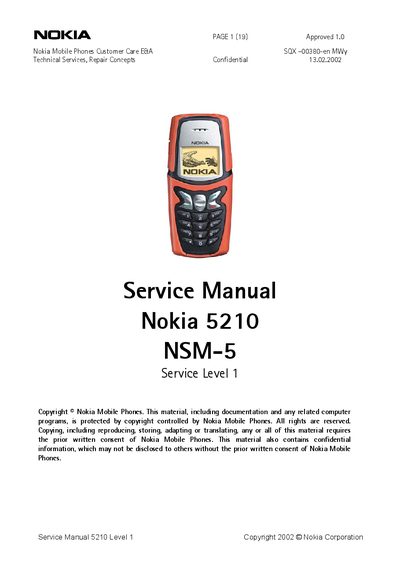

This document is a service manual for Nokia 5210 phone
This Service Manual provides Level 1 service partners with detailed repair procedures, exploded views, and parts information for the Nokia 5210 mobile phone. It includes safety warnings, ESD protection requirements, and recommended tools for testing after service.
The document also contains a Bill of Repair, a parts list with part numbers, and instructions for using the GoNoGo and battery testers to verify functionality before returning the device to the customer.
| Battery capacity | 650 mAh |
|---|
The manual warns not to use the phone in explosive atmospheres, near vehicle electronic systems that could be affected by RF energy, or around medical devices that may be interfered with.
The Acterna/Wavetek GoNoGo Tester is required for the final test to guarantee phone functionality.
The Astratec battery tester is used to test the capacity of Nokia batteries.
The required torque for the 1.6 × 3.2 mm screw is 8 Nm.
