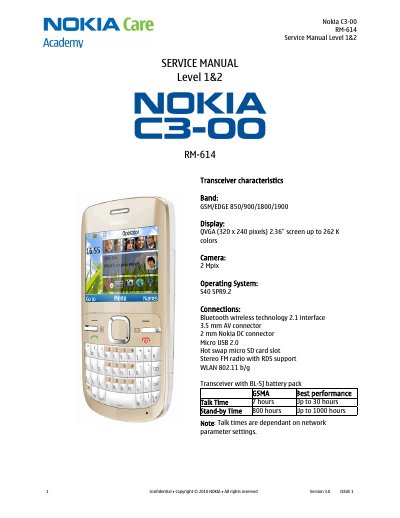

This document is the service manual for Nokia C3-00 RM-614 Level 1&2, which describes the features and characteristics of the product, such as band, display, camera, operating system, connections, and battery information.
This Service Manual provides Level 1 and Level 2 service technicians with detailed instructions for disassembly, assembly, component soldering and maintenance of the Nokia C3-00 mobile phone. It includes warnings, ESD protection guidelines, battery handling, and torque specifications for screws.
The document also lists the phone’s technical specifications such as network bands, display, camera, connectivity options and battery type, helping technicians verify parts and perform accurate repairs.
| Network bands | GSM/EDGE 850/900/1800/1900 |
|---|---|
| Display | QVGA (320 × 240) 2.36" screen, up to 262 K colors |
| Camera | 2 Mpix |
| Operating system | $40 SPR9.2 |
| Bluetooth | Version 2.1 |
| Audio connector | 3.5 mm AV connector |
| Power connector | 2 mm Nokia DC connector |
| USB | Micro USB 2.0 |
| Memory card slot | Hot‑swap micro SD |
| FM radio | Stereo FM with RDS support |
| Wi‑Fi | 802.11 b/g |
| Battery type | BL‑5J battery pack |
| Talk time | 7 hours (up to 30 hours) |
| Stand‑by time | 800 hours (up to 1000 hours) |
It supports GSM/EDGE on the 850, 900, 1800 and 1900 MHz bands.
The phone uses a BL‑5J battery pack.
The manual warns that the handset must not be operated in areas likely to contain potentially explosive atmospheres, such as petrol stations or blasting areas.
