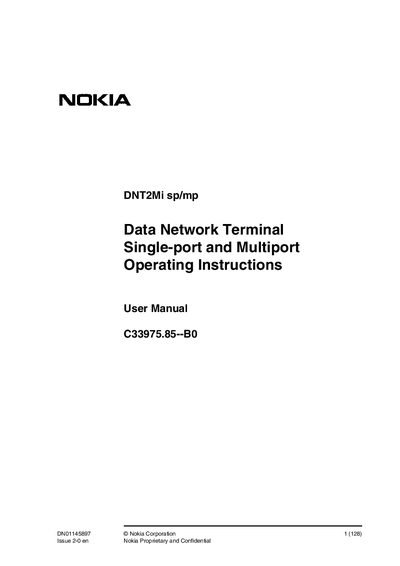

This document is the Nokia DNT2Mi sp/mp user manual, which introduces the product's operating instructions
This manual describes the Nokia DNT2Mi sp/mp Data Network Terminal, covering its hardware construction, front‑ and rear‑panel interfaces, and the various power options (AC, DC, remote). It includes detailed installation procedures for free‑standing, wall‑mounted, and rack‑mounted configurations, as well as grounding and electromagnetic‑compatibility guidelines.
Operational guidance covers menu navigation, port and line configuration, timing sources, protection settings, and monitoring of alarms and statistics. The document also provides troubleshooting steps, factory default values, and a commissioning chart to help users verify correct installation and performance.
| Product code | T65670/80 |
|---|---|
| Power supply options | AC‑powered, DC‑powered, remote‑powered |
It is a Data Network Terminal used for data transmission over the subscriber loop, providing access to the trunk network.
It can be installed as a free‑standing unit, wall‑mounted, or in a 19‑inch rack/modem shelf, with appropriate grounding and EMC considerations.
The terminal is offered in AC‑powered, DC‑powered, and remote‑powered versions.
Default values and settings are documented in the sections titled “Default values” and “Default settings” and can be accessed via the front‑panel menus.
