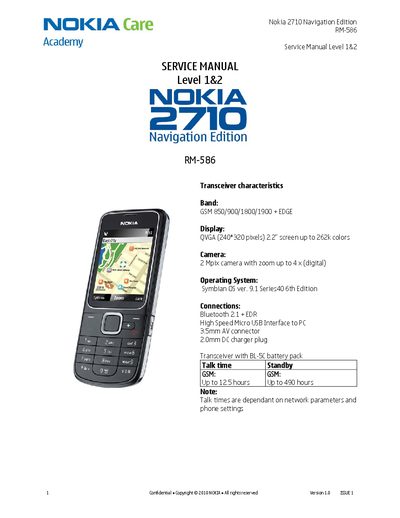

This document is Nokia 2710 Navigation Edition RM-586 Service Manual, which introduces the features, characteristics, specifications, maintenance, etc. of the product
This Service Manual Level 1 & 2 is intended for qualified service technicians working on the Nokia 2710 Navigation Edition (RM‑586). It provides detailed safety warnings, ESD protection requirements, care and maintenance guidelines, battery information, and step‑by‑step disassembly and assembly procedures.
The manual also includes specifications of the device, such as network bands, display, camera, operating system and connectivity options, as well as torque values for critical screws and soldering component references.
| Band | GSM 850/900/1800/1900 + EDGE |
|---|---|
| Display | QVGA (240×320) 2.2" screen up to 262k colors |
| Camera | 2 Mpix camera with digital zoom up to 4× |
| Operating System | Symbian OS ver. 9.1 Series 40 6th Edition |
| Connections | Bluetooth 2.1 + EDR, Micro‑USB, 3.5 mm AV, 2.0 mm DC charger plug |
The hand‑portable telephone must not be operated in areas likely to contain potentially explosive atmospheres, such as petrol stations or blasting areas.
All service points must have sufficient ESD protection; covers must be handled with ESD protection, and all electronic parts should be packed in metallized protective bags when outside an ESD‑protected area.
Torque the four TORX + size 4 screws to 15 Ncm, and the two TORX + size 4 screws to the same torque.
