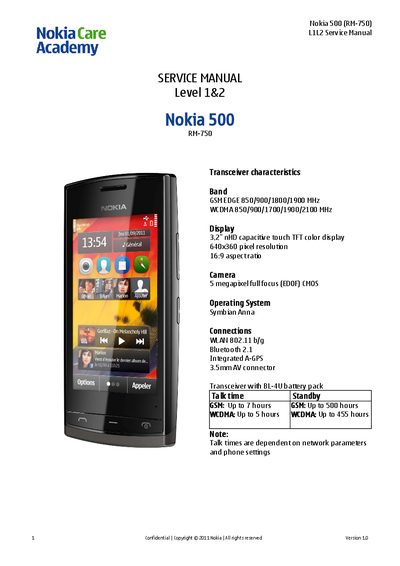

This document is a service manual for Nokia 500 (RM-750). It introduces the product's characteristics, specifications, usage instructions, maintenance, disassembly and other contents.
This Service Manual is intended for qualified Level 1 & 2 service personnel who need to repair or maintain the Nokia 500 (RM‑750) handset. It includes safety warnings, ESD protection requirements, and detailed procedures for disassembly, battery handling, and component replacement.
The document also lists the phone’s technical specifications such as supported network bands, display details, camera resolution, operating system, and wireless connectivity, and provides assembly hints and soldering component references for technicians.
| Network Bands | GSM EDGE 850/900/1800/1900 MHz; WCDMA 850/900/1700/1900/2100 MHz |
|---|---|
| Display | 3.2" nHD capacitive touch TFT, 640×360 px, 16:9 aspect ratio |
| Camera | 5 MP full‑focus (EDOF) CMOS |
| Operating System | Symbian Anna |
Use only batteries and chargers approved by Nokia, unplug the charger when not in use, avoid charging longer than a week, and keep the battery between 15 °C and 25 °C.
The phone supports GSM EDGE 850/900/1800/1900 MHz and WCDMA 850/900/1700/1900/2100 MHz.
The display is a 3.2‑inch nHD capacitive touch TFT with a resolution of 640 × 360 pixels and a 16:9 aspect ratio.
