NOKIA RM-588/RM-94User Manual

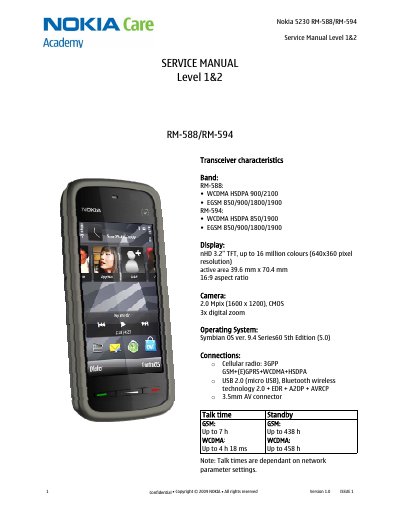

This document is a service manual for Nokia 5230 RM-588/RM-594, providing information about the features and characteristics of the product.

Brand: Nokia
Category: Cell Phones
Document type: Service Manual
Language: English
Pages: 20
File format: PDF
File size: 1.5 MB
Published: 02 May, 2012
Updated: 28 September, 2023
Model: RM-5
MD5 checksum: 37B599C6824C9ABB71B1AC62A76A97B3
PDF: NOKIA RM-588/RM-94User Manual PDF

About this manual

This Service Manual Level 1 & 2 is intended for qualified service technicians working on the Nokia 5230 (RM‑588/RM‑594) handset. It provides detailed information on network bands, hardware specifications, battery handling, ESD protection, and step‑by‑step disassembly and re‑assembly instructions.

The manual also includes safety warnings, care and maintenance guidelines, and a parts list with soldering instructions, ensuring proper repair and compliance with Nokia’s service standards.

What's inside

Change History
Warnings and Cautions
ESD Protection
Care and Maintenance
Battery Information
Assembly Hints
Solder Components

Specifications

Network bands (RM‑588)	WCDMA HSDPA 900/2100, EGSM 850/900/1800/1900
Network bands (RM‑594)	WCDMA HSDPA 850/1900, EGSM 850/900/1800/1900
Display	3.2" TFT, 640×360 px, up to 16 million colours
Camera	2.0 Mpix (1600×1200), CMOS, 3× digital zoom
Operating System	Symbian OS 9.4, Series 60 5th Edition (5.0)
Connections	3GPP GSM+(E)GPRS+WCDMA+HSDPA, micro‑USB 2.0, Bluetooth 2.0 + EDR + A2DP + AVRCP, 3.5 mm AV jack
