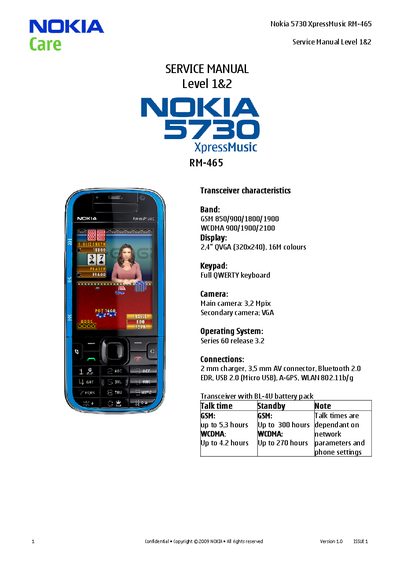

This document is the Nokia 5730 XpressMusic RM-465 service manual, which introduces the features and characteristics of the phone, including band, display, keypad, camera, operating system, connection methods, battery pack, talk time and standby time.
This Service Manual provides detailed information for Level 1 and Level 2 service technicians working on the Nokia 5730 XpressMusic mobile phone. It includes technical specifications, safety warnings, ESD protection guidelines, battery handling, and step‑by‑step disassembly and re‑assembly instructions.
Key sections cover warnings and cautions, ESD protection requirements, care and maintenance tips, battery information, disassembly instructions, and a list of solder components for Level 2 repairs. The manual is intended for qualified service personnel only.
| Band | GSM 850/900/1800/1900 |
|---|---|
| WCDMA | 900/1900/2100 |
| Display | 2.4" QVGA (320x240), 16M colours |
| Keypad | Full QWERTY keyboard |
| Main Camera | 3.2 Mpix |
| Secondary Camera | VGA |
| Operating System | Series 60 release 3.2 |
| Connections | 2 mm charger, 3.5 mm AV, Bluetooth 2.0 EDR, USB 2.0 (Micro‑USB), A‑GPS, WLAN 802.11b/g |
| Talk time (GSM) | up to 5.3 hours |
Servicing must be performed by qualified personnel, using an anti‑static workstation and wrist strap, and only approved components may be used.
Charge the battery with approved chargers, avoid over‑charging, keep it between 15 °C and 25 °C, and replace it after several hundred charge cycles or when talk time drops noticeably.
All work on the phone must be done under ESD protection; components should be packed in metallized bags and ESD‑sensitive parts must not be handled outside an ESD‑protected area.
