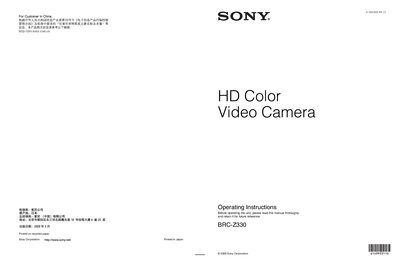

This is an operating manual for the BRC-Z330 HD Color Video Camera
The Sony BRC-Z330 is a compact HD color video camera featuring built‑in pan/tilt/zoom, a 1/3‑type CMOS sensor with 2.25 MP resolution, and multiple output formats including 1080i and 720p. It supports the industry‑standard VISCA protocol for remote control of up to seven cameras and offers optional accessories such as the BRBK‑HD2 HD‑SDI output card.
The manual covers safety precautions, installation on ceilings or high positions, wiring using VISCA RS‑422 connectors, menu operation via the supplied remote commander, and maintenance guidelines. It also provides wiring diagrams, specifications, and troubleshooting tips for reliable operation in professional environments.
| Operating temperature | 0 °C to 40 °C |
|---|---|
| Zoom capability | 18× optical / 4× digital |
| Image sensor resolution | 2,250,000 picture elements (≈2.25 MP) |
| VISCA camera protocol support | Up to 7 cameras can be controlled |
| Power switch | None (unit has no power switch) |
The camera can be used in temperatures from 0 °C to 40 °C.
Up to seven cameras can be connected and remotely controlled using VISCA.
No, the unit does not have a power switch; power is controlled via the AC adapter plug.
