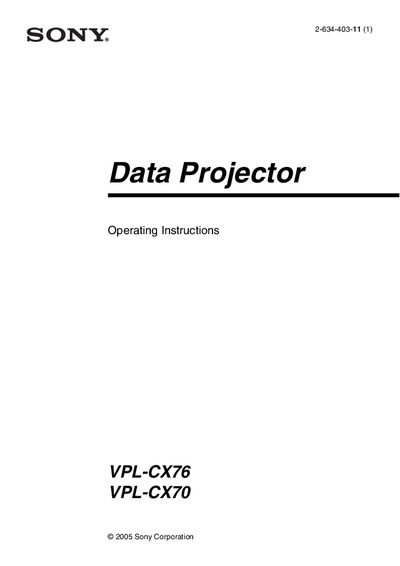

This document is the operating instructions for the Sony VPL-CX76 and VPL-CX70 data projectors released in 2005. The document describes the features of the projectors, controller, connection methods, projection methods, convenient functions, adjustments and settings, maintenance, and troubleshooting.
This manual covers the Sony VPL-CX76 and VPL-CX70 data projectors, describing their features such as high brightness, high picture quality, and network presentation capabilities like Air Shot and Memory Stick support. It explains the automatic setup functions, powered zoom/focus, Side Shot correction, and security features.
Detailed sections guide users through locating and using the control panel, connecting video sources, using the remote commander, and performing maintenance tasks such as lamp replacement and air‑filter cleaning. Troubleshooting tips and specifications are also provided.
| Brightness | 2500 ANSI lm (VPL-CX76), 2000 ANSI lm (VPL-CX70) |
|---|---|
| Resolution | 1024 × 768 (RGB), 750 TV lines (video) |
| Lamp Power | 165 W (UHP lamp) |
| Minimum Throw Distance | 2.4 m (7.8 ft) for an 80‑inch image |
The air filter should be cleaned every 500 hours of operation.
Off & Go keeps the cooling fan running after power is removed, allowing the projector to be moved immediately.
Yes, a Memory Stick can be used to run a presentation without connecting a computer.
