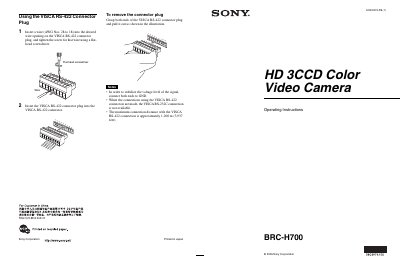

This is a user manual for Sony BRC-H700 3CCD Color Video Camera
This manual covers the Sony BRC-H700 HD 3CCD video camera, detailing its features, system components, and optional accessories. It explains how to install the camera, connect the VISCA RS‑422 connector, and use the supplied remote controllers.
The guide includes safety precautions, menu operation, pan/tilt/zoom control, long‑distance transmission, and troubleshooting steps, helping users achieve reliable high‑definition imaging in various environments.
| Operating temperature range | 0 °C to 40 °C (32 °F to 104 °F) |
|---|---|
| Number of cameras controllable via VISCA | Up to 7 |
| Minimum pan/tilt speed | 0.25°/s |
| Maximum pan/tilt speed | 60°/s |
| Optical zoom | 12× |
| Digital zoom | 4× |
| CCD picture elements | 1,120,000 |
| Lens focal length | 32.5 mm – 390 mm (35 mm equivalent) |
| Pan/tilt range | +170° horizontally, +90° upward, -30° downward |
Up to seven cameras can be connected and remotely controlled.
The camera operates safely between 0 °C and 40 °C (32 °F to 104 °F).
The minimum pan/tilt speed is 0.25° per second.
