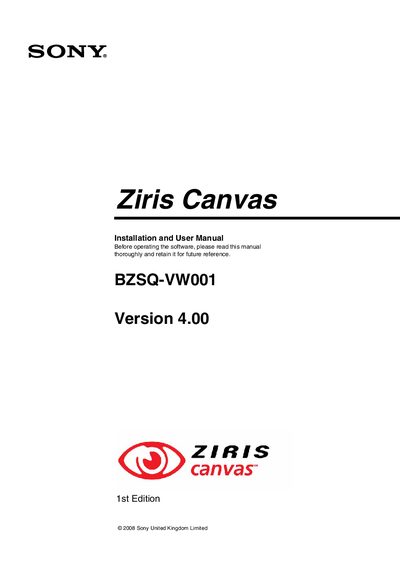

Sony BZSQ-VW001 Installation and User Manual

This document is the installation and user manual for Ziris Canvas, providing instructions and precautions for operating the software.

Brand: SONY
Category: Video Game Consoles
Document type: User Manual
Language: English
Pages: 52
File format: PDF
File size: 2.6 MB
Published: 02 May, 2012
Updated: 29 September, 2023
MD5 checksum: 76A3B0A179C957E8C7A91F5D4E913E7A
PDF: Sony BZSQ-VW001 Installation and User Manual PDF

About this manual

The Sony Ziris Canvas system enables multi‑screen digital signage using a PlayStation 3 as the playback device. It receives media and control files from Ziris Create via Ziris Edge, stores them on the PS3 hard drive, and plays them back to connected displays.

The manual covers initial setup, network configuration, supported media formats, and troubleshooting. It also details system features such as synchronized multi‑player presentations, remote monitoring, and disk‑space requirements.

What's inside

Introduction
Getting Started
Using Ziris View PS3 with Ziris Create
Summary of Features
Supported Functions and Formats
Troubleshooting
Appendix 1 Screen layouts
Appendix 2 Third Party Licences

Specifications

Maximum PNG image size	2048 × 2048 pixels
Maximum MPEG‑2 video resolution	1920 × 1080
Maximum MPEG‑2 video bitrate	25 Mbit/s
Minimum free disk space on PS3	2.5 GB
Maximum concurrent video items	2
Maximum concurrent audio items	2
Maximum total video bitrate for 2 video items	41 Mbit/s

Frequently asked questions

What is the minimum free disk space required on the PS3 for Ziris View?

Ziris View must maintain at least 2.5 GB of free disk space on the PlayStation 3.

How many video items can be played simultaneously?

The system supports up to two concurrent video items.
