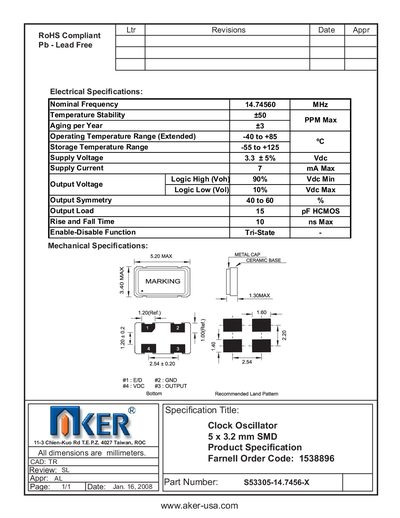

This is a specification sheet for a clock oscillator
The S53305-14.7456-X is a 5 × 3.2 mm SMD clock oscillator designed for precise timing applications. It operates at a nominal frequency of 14.74560 MHz and features a metal‑cap package with a ceramic base.
Key electrical specifications include a temperature stability of 50 ppm (max), supply voltage of 3.3 V (45 % Vde), supply current of 7 mA (max), and a rise/fall time of 10 ns (max). Mechanical details list a maximum metal‑cap height of 5.20 mm and a recommended 2.54 mm land‑pattern pitch.
| Nominal Frequency | 14.74560 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Supply Voltage | 3.3 V (45 % Vde) |
| Supply Current | 7 mA Max |
| Logic High Output Voltage (Voh) | 90 % Vde Min |
| Logic Low Output Voltage (Vol) | 10 % Vde Max |
| Output Symmetry | 40 % to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
| Package Size | 5 × 3.2 mm SMD |
The oscillator operates at a nominal frequency of 14.74560 MHz.
It can operate from –40 °C to +85 °C (extended range).
The device requires a supply voltage of 3.3 V (45 % Vde).
The package measures 5 mm by 3.2 mm and is an SMD type.
