S73305-48.000-15-X is a clock oscillator from Aker company. The frequency is 48.000MHz, the working voltage is 3.3±5%VDC and the working temperature range is -40℃ to +85℃

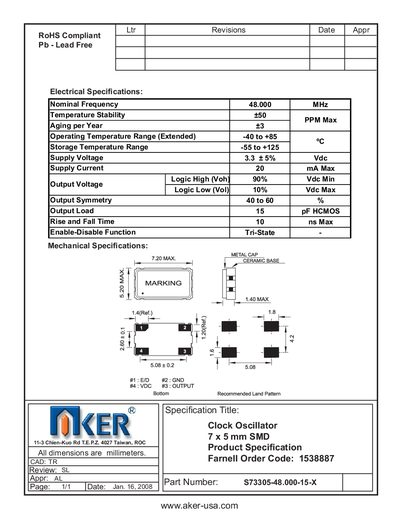

The AKER 73305-48.000-15-X is a 7 × 5 mm surface‑mount clock oscillator designed for precision timing applications. It features a metal cap and ceramic base with a recommended land pattern for PCB assembly.
Electrical specifications include a nominal frequency of 48 MHz, 50 ppm temperature stability, 20 mA maximum supply current, and operation from –40 °C to +85 °C (extended). The device operates from a 3.3 V supply and provides HCMOS output levels with 15 pF load capability.
| Nominal Frequency | 48.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 |
| Supply Voltage | 3.3 V |
| Supply Current | 20 mA Max |
| Output Voltage Logic High (Voh) | 90% Vde Min |
| Output Voltage Logic Low (Vol) | 10% Vde Max |
| Output Symmetry | 40 to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
| Package Size | 7 × 5 mm SMD |
It operates at a nominal frequency of 48.000 MHz.
The extended operating temperature range is –40 °C to +85 °C.
The oscillator requires a 3.3 V supply.
