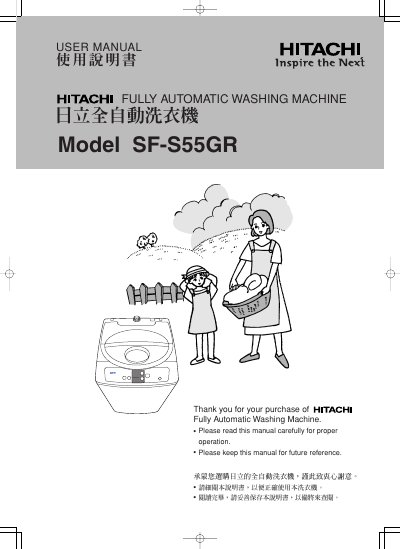

This is the user manual of Hitachi fully automatic washing machine SF-S55GR. It introduces the functions and usage methods of the washing machine.
This manual introduces the Hitachi SF‑S55GR fully automatic washing machine, covering safety precautions, installation requirements, and proper usage. It explains the various washing processes such as NORMAL, HEAVY, SPEEDY, SOAK, SILK, and BLANKET, and provides guidance on detergent use, water level settings, and the washing cap.
Additional sections cover routine maintenance, troubleshooting, optional accessories, and detailed product specifications. The document also includes diagrams for wiring, water hose connections, and adjustable leg installation to ensure stable operation. This manual is written in Chinese.
| Voltage / Frequency | 220V ~ 50Hz |
|---|---|
| Washing Capacity | 5.5 kg |
| Washing Power | 380 W |
| Spinning Power | 300 W |
| Water Pressure Range | 0.03 MPa – 0.8 MPa |
| Dimensions (W×D×H) | 539 mm × 508 mm × 965 mm |
The machine can handle up to 5.5 kg of laundry.
It requires a 220 V supply at 50 Hz.
Loosen the lock nut, adjust the leg up to 40 mm, then retighten the nut to secure the level.
The machine operates with water pressure between 0.03 MPa and 0.8 MPa.
