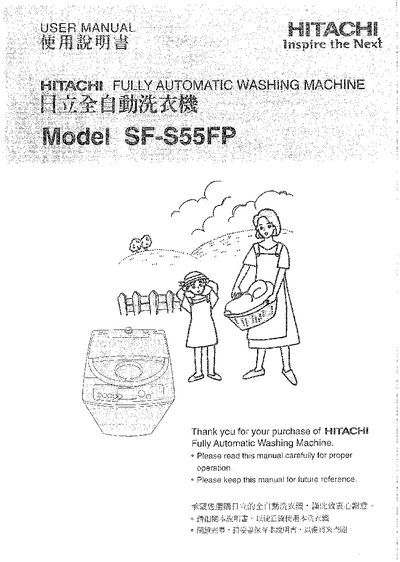

This manual covers safety precautions, installation guidelines, and detailed operation of the Hitachi SF‑S55FP fully automatic washing machine. It explains how to set up the unit on a level surface, connect water supply, and use the various washing processes such as Normal, Silk, and Saving.
Additional sections describe the control panel functions, technical specifications, routine maintenance, troubleshooting, and optional accessories. The document also includes a product‑specific data sheet with key performance figures.
| Model | SF-S55FP |
|---|---|
| Type | Fully automatic washing machine |
| Power Supply | 220V~ 50Hz |
| Normal Washing Capacity | 5.5 kg |
| Washing Mode | Automatic reverse pulsator |
| Tap Water Pressure | 0.03 MPa ~ 0.8 MPa |
| Dimensions (W×L×H) | 500 mm × 565 mm × 965 mm |
| Weight | ≈ 28 kg |
The machine can wash up to 5.5 kg of laundry per cycle.
It operates on a 220 V supply at 50 Hz.
Use the adjustable legs to level the unit, checking that the front, rear, left and right heights differ by less than 3 mm.
