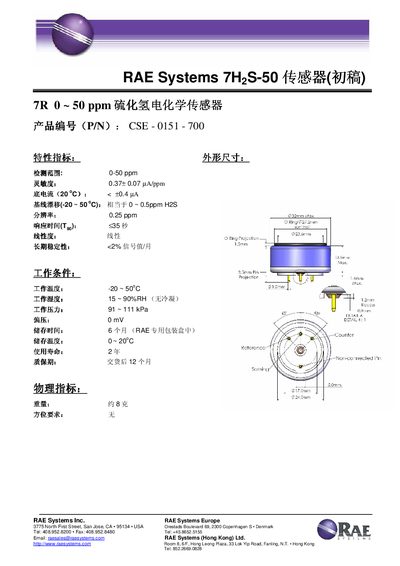

The document describes the features and characteristics of the RAE Systems 7H2S-50 sensor, including detection range, sensitivity, resolution, response time, linearity, and long-term stability.
This datasheet provides key specifications for the RAE Systems 7H2S-50 H₂S sensor, including detection range, operating temperature and humidity limits, and baseline drift. It also includes sensitivity curves and temperature‑dependence graphs.
Contact information for RAE Systems worldwide is listed, with addresses in the United States, Europe, and Asia, along with phone numbers and email for sales inquiries.
| Detection range | 0‑50 ppm |
|---|---|
| Operating humidity | 15 % to 90 % RH |
| Baseline drift | 0.25 ppm |
The sensor can detect hydrogen sulfide from 0 to 50 ppm.
The baseline drift is specified as 0.25 ppm.
