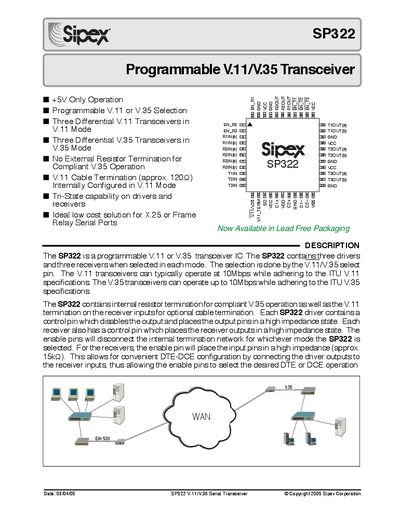

SP322 is a programmable V.11 or V.35 transceiver IC from Sipex Corporation. It contains three drivers and three receivers in each mode and can be switched between V.11 and V.35 modes by the V.11/V.35 select pin. The V.11 transceivers can typically operate at 10Mbps while adhering to the ITU V.11 specifications. The V.35 transceivers can operate up to 10Mbps while adhering to the ITU V.35 specifications. The SP322 also contains internal resistor termination for compliant V.35 operation.
The SP322 is a programmable V.11/V.35 transceiver IC. It contains three drivers and three receivers that can be selected via a V.11/V.35 select pin, offering up to 10 Mbps data rates while complying with ITU specifications. The device includes internal resistor termination for V.35 operation and optional cable termination for V.11 mode, with enable pins that place outputs in a high‑impedance state for flexible DTE/DCE configurations.
Electrical characteristics such as supply voltage (+4.75 V to +5.25 V), low shutdown current (4 pA), and maximum transmission rate (10 Mbps) are detailed, along with package information (44‑pin MQFP) and ordering options, including lead‑free variants. The datasheet provides test circuit diagrams, switching waveforms, and timing specifications for both driver and receiver sections.
| Supply Voltage | +4.75 V to +5.25 V |
|---|---|
| Shutdown Current | 4 pA |
| Power Dissipation (44‑pin QFP) | 1500 mW |
| Logic Input Low (Vil) | 0.8 V |
| Logic Input High (Vih) | 2.0 V |
| V.35 Driver Test‑Terminated Voltage | +0.44 V to +0.66 V |
| V.11 Driver Open‑Circuit Voltage | +6.0 V |
| Maximum Transmission Rate | 10 Mbps |
| Package Type | 44‑pin MQFP |
The SP322 operates from +4.75 V to +5.25 V.
The device supports up to 10 Mbps transmission rate.
The SP322 includes three drivers and three receivers.
It is supplied in a 44‑pin MQFP package.
