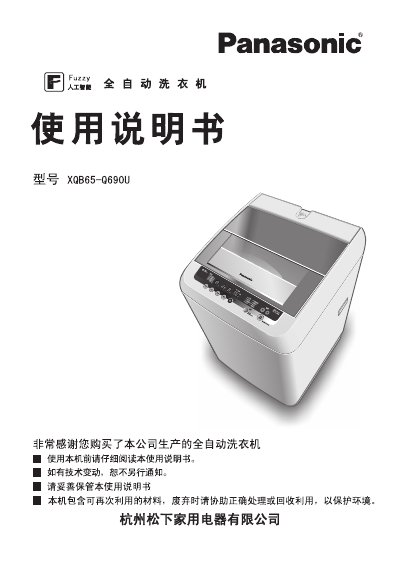

The Panasonic XQB65‑Q690U washing machine manual covers all essential information for safe and effective use. It includes safety precautions, component identification, installation of water inlet and drain hoses, and detailed operating procedures such as program selection, detergent use, and special cycles for delicate fabrics.
The guide also contains a technical specifications table and a troubleshooting section that lists common fault symptoms and their remedies, helping users resolve issues like no power, water supply problems, or abnormal noises. This manual is written in Chinese.
| Model | XQB65-Q690U |
|---|---|
| Rated Voltage | 220 V |
| Rated Frequency | 50 Hz |
| Washing Power | 410 W |
| Spin Power | 250 W |
| Net Weight | 31 kg |
| Standard Washing Capacity | 6.5 kg |
| Standard Spin Capacity | 6.5 kg |
| Standard Water Consumption | 54 L |
| Water Pressure | 0.03‑1 MPa |
| Washing Noise | <62 dB(A) |
| Spin Noise | <72 dB(A) |
| Energy Consumption | 2.0 kWh |
| Water Consumption per Cycle | 130 L |
| Cleaning Ratio | 0.80 |
| Energy Efficiency Class | Class 2 |
The washing machine can handle up to 6.5 kg of laundry per wash.
The machine is rated for 220 V AC supply.
