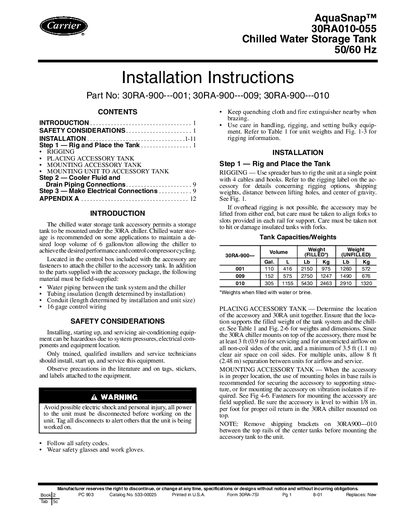

This manual is a chilled water storage tank accessory installation guide, which introduces the installation steps, including rigging and placing the tank, cooler fluid and drain piping connections, and electrical connections
The manual describes the AquaSnap 30RA010-055 accessory that allows a storage tank to be mounted under a 30RA chiller. It explains the purpose of the tank, required field‑supplied materials, and the recommended loop volume of 6 gallons per ton to improve performance and control compressor cycling.
Key sections cover safety precautions, rigging and placement of the tank, mounting the accessory to the chiller, fluid and drain piping connections, and electrical wiring. Weight tables, dimensions, and clearance requirements are provided to ensure proper installation and service access.
| Minimum clearance (non‑coil sides) | 3 ft (0.9 m) |
|---|---|
| Minimum clearance (coil sides) | 3.5 ft (1.1 m) |
| Volume (filled) – 30RA‑900---001 | 110 gallons |
| Weight (filled) – 30RA‑900---001 | 416 lb |
