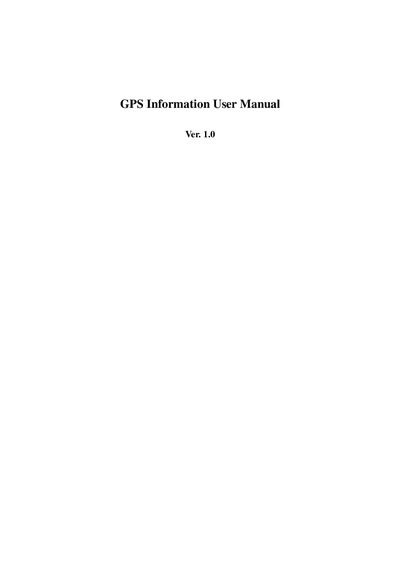

This document is the GPS Information User Manual, which describes the installation process and usage of GPS Information. It includes verifying GPS configuration, enabling WAAS/EGNOS, and power saving mode.
This manual describes the installation procedure for the GPS Information software, including running the Gpsinfo.exe installer, selecting the destination folder, and installing the program on both PC and PDA devices. It also explains how to configure communication settings such as COM port and baud rate.
After installation, the guide covers the main interface, how to start and stop the GPS receiver, enable WAAS/EGNOS, use power‑save mode, and interpret the GPS Info window, satellite status chart, and positioning data.
| Baud Rate | 4800 |
|---|---|
| Power Save Mode | Enabled/Disabled via checkbox |
| WAAS/EGNOS | Available, enable via checkbox |
| Horizontal Accuracy Range | 0.5 – 99.9 |
| Position Accuracy Range | 0.5 – 99.9 |
Check the WAAS/EGNOS box in the software to increase positioning accuracy.
Set the baud rate to 4800 as recommended.
Click the “Start GPS” button in the main window.
Open the GPS Info window and use the Satellite Status Chart to see tracking information.
