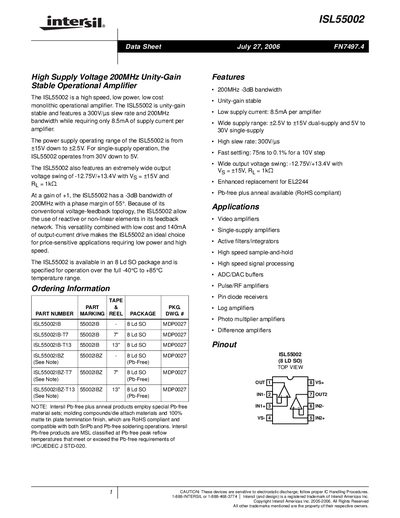

ISL55002 is a high speed, low power, low cost monolithic operational amplifier from Intersil. The device features a 300V/µs slew rate and 200MHz bandwidth while requiring only 8.5mA of supply current per amplifier. The operating supply range of the ISL55002 is from ±15V down to ±2.5V. For single-supply operation, the ISL55002 operates from 30V down to 5V. The ISL55002 also features an extremely wide output voltage swing of -12.75V/+13.4V with VS = ±15V and RL = 1kΩ. At a gain of +1, the ISL55002 has a -3dB bandwidth of 200MHz with a phase margin of 55°. Because of its conventional voltage-feedback topology, the ISL55002 allow the use of reactive or non-linear elements in its feedback network. This versatility combined with low cost and 140mA of output-current drive makes the ISL55002 an ideal choice for price-sensitive applications requiring low power and high speed. The ISL55002 is available in an 8 Ld SO package and is specified for operation over the full -40°C to +85°C temperature range.
The ISL55002 is a monolithic operational amplifier offering unity‑gain stability, a 300 V/µs slew rate and a 200 MHz -3 dB bandwidth while drawing only 8.5 mA per amplifier. It operates from a wide supply range (+2.5 V to +15 V dual‑supply or 5 V to 30 V single‑supply) and provides a large output swing of –12.75 V to +13.4 V.
Designed for video, single‑supply, active‑filter and high‑speed sample‑and‑hold applications, the device can drive capacitive loads, offers a typical short‑circuit current of 140 mA, and includes detailed thermal and power‑dissipation data for reliable design.
| -3 dB Bandwidth | 200 MHz |
|---|---|
| Slew Rate | 300 V/µs |
| Supply Voltage Range | +2.5 V to +15 V dual, 5 V to 30 V single |
| Output Voltage Swing | -12.75 V to +13.4 V (Vg=+15 V) |
| Input Offset Voltage | 1.2 mV (min) – 5 mV (max) |
| Supply Current | 8.5 mA per amplifier |
| Operating Temperature Range | -40 °C to +85 °C |
| Typical Short‑Circuit Current | 140 mA |
It can operate from +2.5 V to +15 V with dual supplies, or from 5 V to 30 V with a single supply.
With a +15 V supply, the output can swing from –12.75 V to +13.4 V.
The device typically limits short‑circuit current to about 140 mA.
