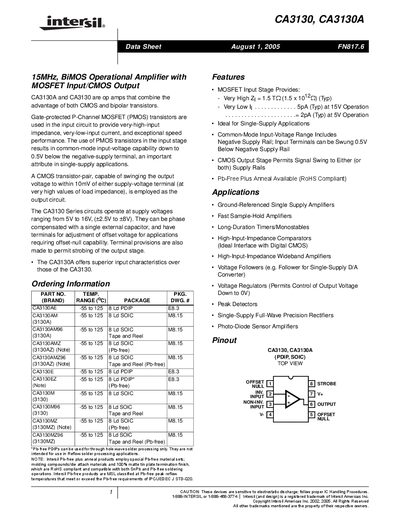

The CA3130 and CA3130A are op amps that combine the advantage of both CMOS and bipolar transistors. Gate-protected P-Channel MOSFET (PMOS) transistors are used in the input circuit to provide very-high-input impedance, very-low-input current, and exceptional speed performance. The use of PMOS transistors in the input stage results in common-mode input-voltage capability down to 0.5V below the negative-supply terminal, an important attribute in single-supply applications. A CMOS transistor-pair, capable of swinging the output voltage to within 10mV of either supply-voltage terminal (at very high values of load impedance), is employed as the output circuit. The CA3130 Series circuits operate at supply voltages ranging from 5V to 16V, (±2.5V to ±8V). They can be phase compensated with a single external capacitor, and have terminals for adjustment of offset voltage for applications requiring offset-null capability. Terminal provisions are also made to permit strobing of the output stage. • The CA3130A offers superior input characteristics over those of the CA3130.
The CA3130 series are BiMOS operational amplifiers with MOSFET input and CMOS output stages. They operate from 5 V to 16 V supplies and can be used in single‑supply designs, offering very high input impedance and low input current.
The document provides absolute maximum ratings, electrical specifications, package options, application circuits such as voltage followers, DACs and full‑wave rectifiers, and guidance on power‑supply considerations and noise performance.
| Supply Voltage Range | 5 V to 16 V |
|---|---|
| Gain‑Bandwidth Product | 15 MHz |
| Maximum Junction Temperature (Plastic Package) | 150 °C |
The common‑mode range includes the negative supply rail and can go 0.5 V below the negative supply.
Yes, the device is ideal for single‑supply applications.
