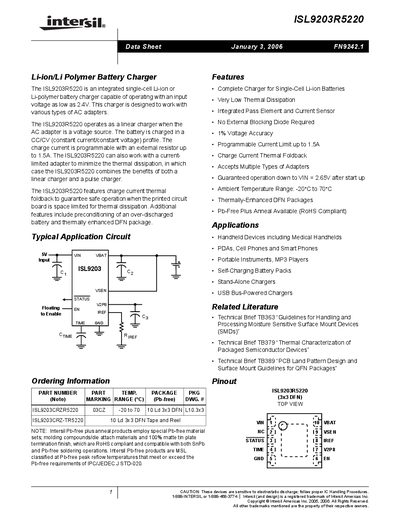

ISL9203R5220 is an integrated single-cell Li-ion or Li-polymer battery charger capable of operating with an input voltage as low as 2.4V. This charger is designed to work with various types of AC adapters. When the AC adapter is a voltage source, the ISL9203R5220 operates as a linear charger. The battery is charged in a CC/CV (constant current/constant voltage) profile. The charge current is programmable with an external resistor up to 1.5A. The ISL9203R5220 can also work with a current- limited adapter to minimize the thermal dissipation, in which case the ISL9203R5220 combines the benefits of both a linear charger and a pulse charger. The ISL9203R5220 features charge current thermal foldback to guarantee safe operation when the printed circuit board is space limited for thermal dissipation. Additional features include preconditioning of an over-discharged battery and thermally enhanced DFN package.
The ISL9203R5220 is an integrated charger for single‑cell Li‑ion or Li‑polymer batteries. It operates from a low input voltage (as low as 2.4 V) and can be powered by a variety of AC adapters. The device supports both linear and pulse‑charging modes and includes thermal foldback to protect the circuit when the PCB cannot dissipate heat efficiently.
The datasheet provides detailed electrical specifications, pin descriptions, recommended layout practices, and mechanical dimensions for the 3 × 3 mm DFN package. It also includes application notes for handheld devices, USB‑bus‑powered chargers, and stand‑alone charging solutions.
| Input voltage range (VIN) | 2.4 V – 7 V (recommended 4.3 V to 6.5 V) |
|---|---|
| Programmable charge current | up to 1.5 A |
| Ambient temperature range | -20 °C to 70 °C |
| Voltage accuracy | ±1 % |
| Package type | 3 × 3 mm DFN (dual‑flat‑no‑lead) |
| Thermal foldback | Charge current folds back near 100 °C |
The charger can be programmed for a maximum charge current of 1.5 A using an external resistor.
It operates with VIN as low as 2.4 V and is recommended for 4.3 V to 6.5 V, with an absolute maximum of 7 V.
The device is supplied in a 3 × 3 mm dual‑flat‑no‑lead (DFN) package.
