This document introduces the specifications and features of the 221 model of refrigerator.

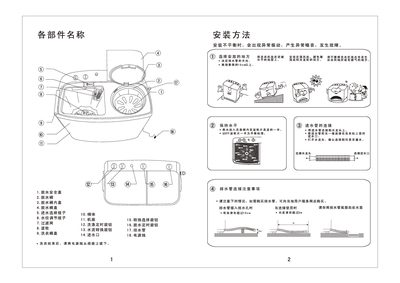

This manual covers the Samsung dual‑drum washing machines XPB50-88S, XPB52-88S and XPB60-88S. It includes parts identification, installation steps, operating procedures, filter cleaning, safety precautions, product specifications and troubleshooting guidance.
The document explains how to correctly position the machine, connect water and drain hoses, set washing and spin times, and maintain the appliance safely. It also lists the technical specifications such as capacity, power consumption and dimensions. This manual is written in Chinese.
| Washing capacity | 5.0 kg (XPB50-88S) |
|---|---|
| Spin capacity | 4.5 kg (XPB50-88S) |
| Water capacity (high) | 50 L |
| Washing power consumption | 1300 W |
| Voltage | 220 V |
| Dimensions | 780 mm × 420 mm × 850 mm |
Choose a level location, keep at least 10 cm clearance from the wall, level the machine, connect the water inlet hose to the tap and the drain pipe to the drain, then fill the tub to half the height of the agitator before starting.
Pull the filter out by hand as shown in the diagram, rinse it with clean water, flip it back to its original orientation and reinstall it into the washing machine.
