The document describes the features and characteristics of a product with the model XQB30-UBS.

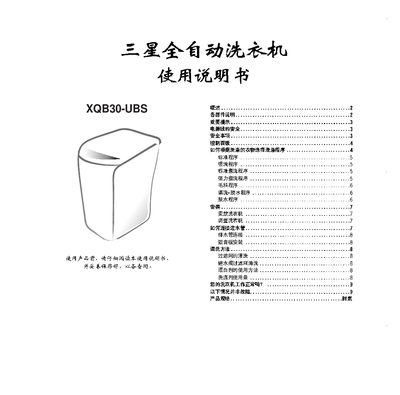

This manual explains the components, installation steps, and how to connect the water inlet and drain pipes for the Samsung XQB30-UBS washing machine. It also details the control panel functions and the various washing programs such as standard, strong, wool, and rinse‑plus‑spin.
Safety warnings, maintenance procedures like filter cleaning and bleach usage, as well as troubleshooting tips for common issues are included to help users keep the machine operating correctly. This manual is written in Chinese.
| Rated Power Consumption | 215‑2300 W |
|---|---|
| Washing Capacity | 3.0 kg |
| Dimensions (W×H×D) | 450 mm × 540 mm × 768 mm |
| Weight | 26 kg |
| Standard Water Consumption | 28 L |
| Water Pressure Range | 0.05‑0.78 MPa |
| Drum Spin Speed | 900 rpm |
| Agitator Speed | 150 rpm |
The machine can wash up to 3.0 kg of laundry per cycle.
Check that the drain pipe is correctly installed, not bent, and placed low enough; ensure it is not blocked or kinked.
No. If the power cord is damaged, it must be replaced by the manufacturer’s service center or qualified personnel.
