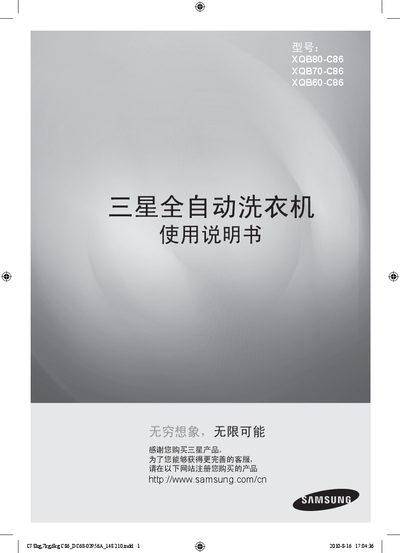

Samsung fully automatic washing machine user manual, including product features, safety precautions, etc.
This manual explains how to safely install and set up the Samsung XQB80‑C86, XQB70‑C86 and XQB60‑C86 front‑load washing machines. It covers unpacking, positioning, leveling, water‑hose and drain‑hose connections, as well as mounting the noise‑reduction panel.
The guide also describes the operating controls, program selection, cleaning procedures, and provides a table of technical specifications such as dimensions, capacity, power consumption and recommended water pressure. Troubleshooting tips and safety warnings are included to help avoid accidents and damage. This manual is written in Chinese.
| Dimensions (W x D x H) – XQB80-C86 | 580 mm × 606 mm × 945 mm |
|---|---|
| Dimensions (W x D x H) – XQB70-C86 | 580 mm × 606 mm × 900 mm |
| Dimensions (W x D x H) – XQB60-C86 | 540 mm × 576 mm × 875 mm |
| Rated washing & spin capacity – XQB80-C86 | 8.0 kg |
| Rated power consumption – XQB80-C86 / XQB70-C86 | 350 W |
| Recommended water pressure | 0.03 MPa – 1 MPa |
| Spin speed | 715 r/min |
Place the machine on a flat surface, adjust the front leveling feet until the machine is level, and ensure the rear feet are at least 10 cm higher than the floor.
The washing machines are designed to operate with a water pressure between 0.03 MPa and 1 MPa.
The spin speed is rated at 715 revolutions per minute.
XQB80‑C86 holds 8 kg, XQB70‑C86 holds 7 kg, and XQB60‑C86 holds 6 kg of laundry per cycle.
