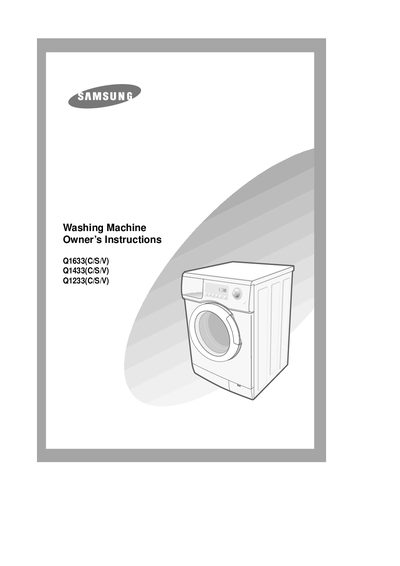

This document is the Samsung washing machine user manual, which introduces the washing machine's use methods and precautions.
This manual covers essential safety precautions and step‑by‑step installation guidance, including unpacking, removing shipping bolts, connecting water and drain hoses, and proper grounding of the appliance. Follow the instructions to ensure a safe setup and avoid damage.
It also explains how to operate the washer—selecting programs, adding detergent, using fuzzy‑logic and delay‑start features—and provides maintenance tips, troubleshooting advice, and technical specifications for the Q1633, Q1433, and Q1233 front‑loading models.
| Type | Front loading washer |
|---|---|
| Dimensions (W×D×H) | 600 mm × 600 mm × 850 mm |
| Water pressure | 50 kPa ~ 800 kPa |
| Weight | 75 kg |
| Wash & spin capacity | 7.5 kg (dry laundry) |
| Power (washing & heating) | 2400 W |
| Energy consumption | 2800 W |
| Maximum spin speed | 1600 rpm |
| Water volume per standard cycle | 60 L |
| Package weight (paper) | 25 kg |
| Package weight (plastic) | 10 kg |
Remove the five shipping bolts from the back of the unit by loosening them with the supplied wrench and pulling each bolt head through the hole.
Connect one end of the hose to the machine’s cold (or hot) water inlet and the other end to the corresponding faucet, tightening both fittings by hand.
Always unplug the appliance from the electrical outlet or set the On/Off button to Off before cleaning or performing maintenance.
The washer can spin up to 1600 rpm, depending on the model.
