The WM1-DIN27AAD0XX is a 3-digit multi-range microprocessor meter produced by WEG Germany. It has the scrolling display function of power, energy, power factor (cos ϕ), current and voltage, and can automatically select the k (kilo) or M (mega) scale. It also has the function of automatic peak value measurement, and has dual measurement inputs: 5A or 27A. In addition, the housing of this meter is easy to mount on a DIN rail and offers an IP40 protection rating.
The WM1-DIN is a DIN‑rail mounted power analyzer that measures voltage, current, power, energy, power factor and peak values. It offers multi‑range input (up to 5 A or 27 A), automatic scaling, and optional programmable alarm setpoints, pulse output and RS‑485 serial interface.

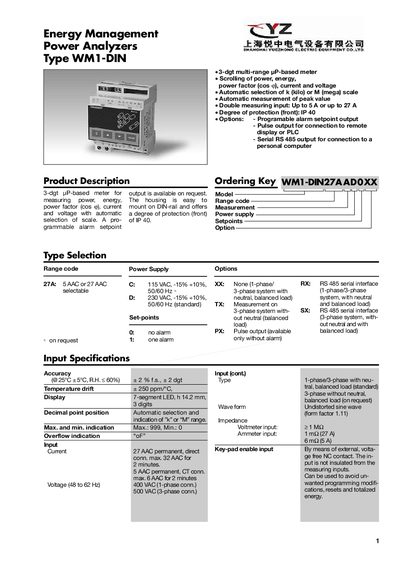

The manual provides detailed input and output specifications, front‑panel description, wiring diagrams for single‑ and three‑phase connections, and step‑by‑step programming instructions. Safety information, protection rating (IP 40) and environmental limits are also included.
| Input Current Range | 5 A permanent, up to 27 A (CT) for 2 minutes |
|---|---|
| Degree of Protection (front) | IP 40 |
| Display | 7‑segment LED, 3 digits, max 999 |
| Power Consumption | 2.5 VA |
| Insulation Resistance | 4 kV between inputs and power supply |
The front panel has an IP 40 degree of protection.
The device can provide a programmable alarm setpoint output, a pulse output, and an optional RS‑485 serial interface.
The display is a 7‑segment LED showing three digits, with a maximum read‑out of 999.
