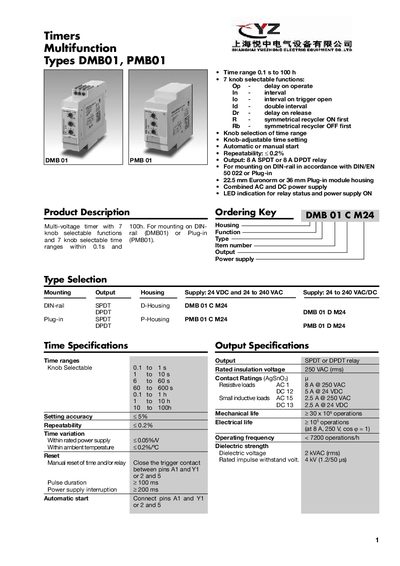

Multi-function timer DMB01, PMB01 has 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h. Can be mounted on DIN-rail (DMB01) or Plug-in (PMB01).
The Tugimong DMB01 and PMB01 are multifunction timers with selectable functions such as delay on operate, interval, double interval, and symmetrical recycler. They support both DIN‑rail and plug‑in mounting, offering SPDT or DPDT relay outputs rated at 8 A.
The timers operate from a combined AC/DC supply (24 VDC ±15% or 24‑240 VAC ±10%) and provide LED indicators for power and relay status. Detailed wiring and operation diagrams are included, along with environmental ratings (IP20, temperature –20 °C to 60 °C).
| Time range | 0.1 s to 100 h |
|---|---|
| Output type | 8 A SPDT or 8 A DPDT relay |
| Rated insulation voltage | 250 VAC (rms) |
| Contact rating (resistive load) | 8 A @ 250 VAC |
| Contact rating (DC load) | 5 A @ 24 VDC |
| Repeatability | < 0.2 % |
| Power supply voltage | 24 VDC ±15% or 24‑240 VAC ±10% |
They can be set from 0.1 seconds up to 100 hours.
The timers accept 24 VDC ±15% or 24‑240 VAC ±10% (45‑65 Hz).
The repeatability is better than 0.2 %.
